Vankka

Standing seam roof system

VANKKA Classic

The reference roof. Concealed fixings, mechanically closed seam.

Code
VC
Fixing
Concealed fixing
Category
Roofing Systems
Get a quoteTechnical data

Profile cross-section — schematic, not to scale

Overview

VANKKA Classic is our reference roof system: long steel pans joined by an upstanding seam that is closed mechanically on site, with every fixing hidden inside the joint. Nothing penetrates the weathering surface, so the roof has no exposed fastener to work loose, no gasket to perish and no line of screw heads to telegraph across the elevation.

The pan is rolled to the length of the run wherever transport allows, which removes transverse laps — historically the first place a cold roof leaks. Clips allow the sheet to move as it heats and cools without loading the substructure, an unremarkable detail until you have watched a rigidly fixed roof work itself apart over twenty Nordic winters.

Because the system is specified as an assembly, the trims, flashings, clips and sealing components are drawn together and supplied together. What arrives on site is a roof, not a pile of parts that happen to be the same colour.

Applications

  • Residential pitched roofs
  • Architectural and public buildings
  • Heritage and restoration work
  • Low-pitch commercial roofs
  • Coastal and exposed sites
01

No exposed fasteners

Every clip and screw sits inside the seam, under cover. The weathering surface is unbroken from ridge to eaves.

02

Cut to the run

Pans are produced to the length of the roof plane where transport permits, eliminating transverse laps entirely.

03

Free thermal movement

Sliding clips let the sheet expand and contract across its full length without transferring load into the structure.

04

Low pitch capability

The mechanically closed seam extends the system below the pitch limits of a lapped, exposed-fixed roof.

Technical data

Specifications

All VANKKA data is metric. Values are confirmed for your project at quotation and issued with the technical documentation.

Verified technical data for this product is being finalised. The data sheet structure below shows exactly what will be published — request the full technical documentation and our team will send the current figures for your project.

Geometry

Geometry
Effective cover widthOn request
Total sheet widthOn request
Profile heightOn request
Rib / seam spacingOn request
Minimum roof pitchOn request
Minimum lengthOn request
Maximum lengthLonger runs subject to transportOn request

Material

Material
SubstrateHot-dip metallic coated steelOn request
Steel gradeTo EN 10346On request
Nominal thicknessOn request
Metallic coatingOn request
MassOn request

Coating

Coating
Coating systemsSee colours & coatingsOn request
Nominal coating thicknessOn request
GlossOn request
Corrosivity classTo EN ISO 12944-2On request
UV resistance classTo EN 10169On request
Reverse side coatingOn request

Performance

Performance
Span capacitySee load-span tablesOn request
Wind uplift resistanceOn request
Snow load capacityOn request
Reaction to fireTo EN 13501-1On request
External fire performanceTo EN 13501-5On request
Service temperature rangeOn request

Warranty & compliance

Warranty & compliance
Technical warrantyOn request
Surface warrantyCoating dependentOn request
Harmonised standardDeclaration of performance issued per deliveryOn request
CE markingOn request

Finishes

Coating systems and colours

Coating choice is driven by exposure and expected service life rather than by colour. Both are confirmed with your quotation.

All colours & coatings

Polyurethane

PUR

Built for the Nordic envelope.

Matt Polyester

MP

Low gloss, low reflection, contemporary.

Standard Polyester

SP

The volume coating. Proven, economical, widely specified.

PVDF / Fluoropolymer

PVDF

Maximum colour stability.

Colours available in these coating systems

Pure White

RAL 9010

Grey White

RAL 9002

Light Grey

RAL 7035

Grey Aluminium

RAL 9007

Iron Grey

RAL 7011

Graphite Grey

RAL 7024

Anthracite Grey

RAL 7016

Jet Black

RAL 9005

Light Ivory

RAL 1015

Clay Brown

RAL 8003

Copper Brown

RAL 8004

Chocolate Brown

RAL 8017

Oxide Red

RAL 3009

Brown Red

RAL 3011

Wine Red

RAL 3005

Moss Green

RAL 6005

Chrome Green

RAL 6020

Fir Green

RAL 6009

Gentian Blue

RAL 5010

Steel Blue

RAL 5011

Slate Blue

RAL 5008

Silver Metallic

RAL 9006

Graphite Metallic

RAL 9023

On-screen colours are approximations. Coated steel changes appearance with gloss level, surface texture, viewing angle and daylight. Always confirm a colour against a physical VANKKA sample before ordering.

Documentation

Everything you need to specify it.

Data sheets, installation guides, CAD details, declarations of performance and warranty terms. Documents not yet published can be requested directly and will be sent by the technical team.

Full document library

Gallery

VANKKA Classic in use

Photography of this product in production and on completed buildings.

Completes the system

Trims and accessories designed for this product

Ordered with the profile, these come from the same coil and the same batch — so they match exactly.

Trims & flashings

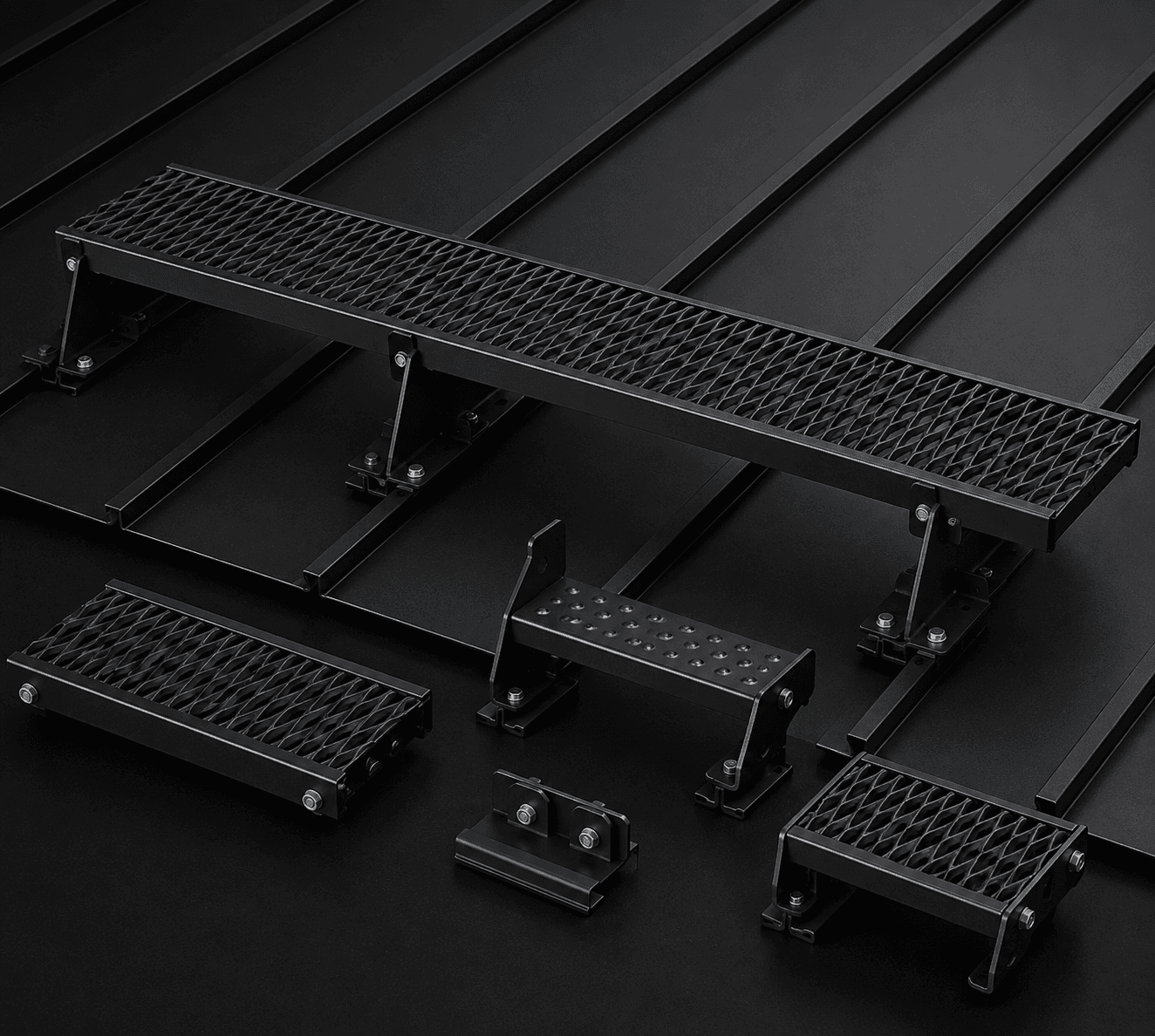

Accessories & supplies
